GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power

Contact Now

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power

Minimum Order Quantity :	32 PCS	Price :	PLEASE CONTACT US FOR DETAILS
Packaging Details :	CARTON WITH FOAM BOX AND ANIT-CORRISON PROTECT.	Delivery Time :	14 DAYS
Payment Terms :	Western Union, MoneyGram, T/T	Supply Ability :	1000 PCS / MONTH

Place of Origin:	GUANGZHOU, CHINA	Brand Name:	GDHY
Certification:	SGS,ISO	Model Number:	C41701664KBB2301-01

Detail Information
CAPACITY:	0.66μF	RATED VOLTAGE:	1000VRMS
TOLERANCE:	±10%	DIMENSION:	808036MM
DIELECTRIC:	POLYPROPYLENE	MAX IRMS:	500A
MAX POWER:	400KVAR	ESR:	0.8mΩ
Highlight:	700V Water Cooled Capacitors , C41 Water Cooled Capacitors , 0.66UF Water Cooled Capacitors

Product Description

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Capacity	0.66μF
Rated Voltage	1000Vrms
Model Number	C41701664KBB2301-01
Max Power	400kVar
Capacity Tolerance	±10%
ESR mΩ	0.8 mΩ
Operating Temperature Range	-40℃～+85℃
Dimension	808036mm
Test Voltage between Terminals	1.5UNAC 10s
Test Voltage between Terminals	3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Application

Widely used in high power and high frequency resonant devices.

Can be used in applications including induction heating, RF Amplifiers, welding equipment, heat treatment, medical imaging, wireless charging , electric vehicle charging, etc.

For replace Celem power capacitors.

Feature

● Conduction cooled

● Low dissipation factor(tgδ), ESL and ESR

● High voltage, high frequency and high dV/dt; high current resistance

● Excellent heat dissipation

● Self healing, maximum operating core temperature 85℃

● High thermal withstand capacity

● Threaded hole for mounting on bus-bar

Product Picture

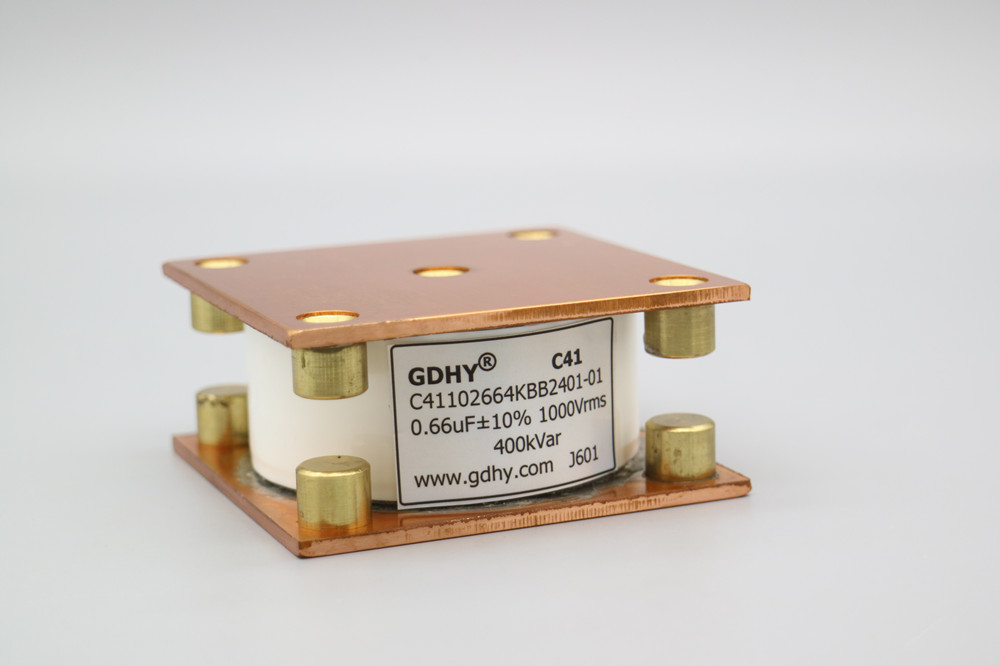

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 1

Product shape

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 3

Production

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 4

Workshop& Equipment

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 5

Packing method

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 6

Certificate

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 7

Exhibition

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 8

GDHY Water Cooled Capacitor C41-BB2 0.66uF 1000V 400KVar (Alcon FP-1-400) for Induction Melting Machine with High Frequency High Power 9
