Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor
Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor
Contact Now

Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor

Minimum Order Quantity : 20pcs Price : USD110
Delivery Time : 14days Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 1000PCS/MONTH
Place of Origin: China Brand Name: GDHY
Certification: ISO,SGS Model Number: C41102503KBC2151-01

Detail Information
Capacity: 0.05uF Voltage: 1000VAC
Size: 68mm*30mm*30.2mm Power: 150KVAR
Frequency: 478-700KHZ Model: C41102503KBC2151-01
Brand: GDHY Terminal: Copper
Capacity Tolerance: ±5% ~ ±10% Material: Polypropylnen Film&Copper
Series: Conduction Cooled Capacitor Place Of Original: China
Max Irm: 250A Application: Induction Heating, Heat Treatment, Plasma Applications, Resonant Circuits, Medical Imaging, Wireless Power Transfer, EV (electric Vehicle) Charging, IPT, High Frequency Inverters,etc.
High Light:

Celem CSP150

,

Alcon FP-4-150-SM/SP

,

Polypropylene Conduction Cooled Capacitor

Product Description

C41-BC2 0.05UF 1000V 150KVar Alcon FP-4-150-SM/SP and Celem CSP150 Polypropylene Conduction-cooled Capacitor



Technical Parameter

Reference Standards GB/T 3984-2004 IEC 60110.1
Operating Temperature Range -40℃～85℃
Capacity Range 0.25μF～2.4μF
Power Range 150kVar-200 kVar
Rated Voltage 400-1000VAC
Capacity Tolerance ±5% ~ ±10%
Test Voltage between Terminals 1.5UNAC 10s
2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy 100000h at UN and 70℃,30000h at Urms





Application



Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.



Features



● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt

● Can bear large current, excellent heat dissipation

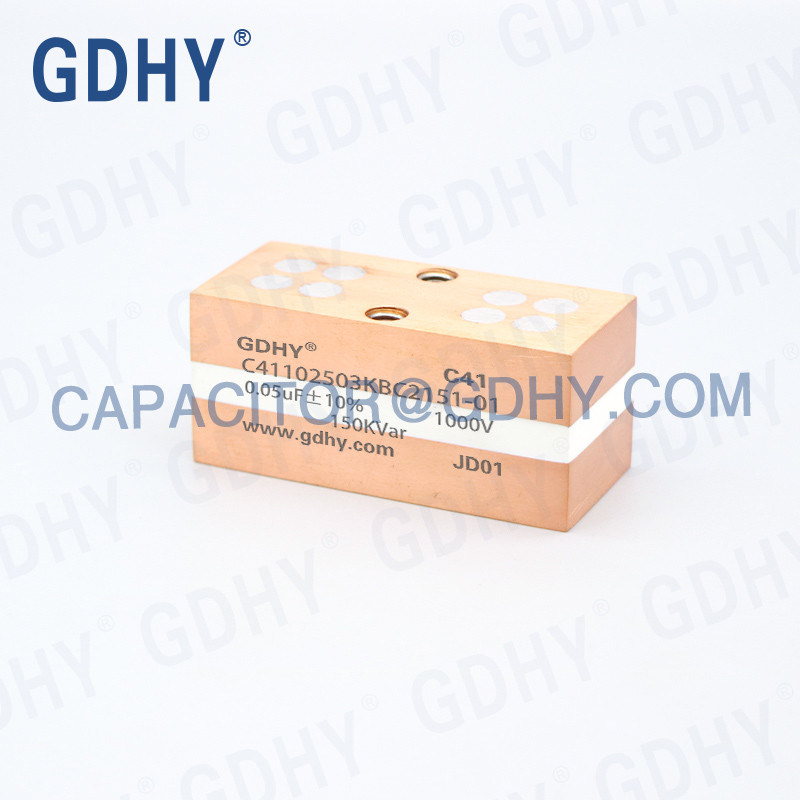

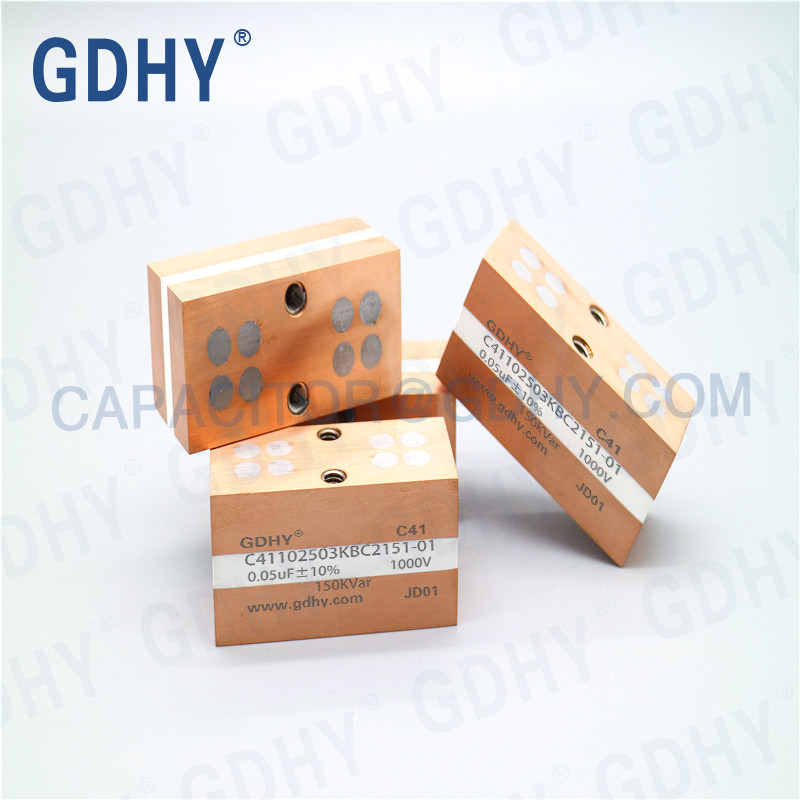

Product Picture



Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor 0Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor 1





Product Shape



Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor 2



Workshop&Equipment

Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor 3





Exhibition



Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor 4



Certification

Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor 5



Packing Method



Alcon FP-4-150-SM/SP Celem CSP150 Polypropylene Conduction Cooled Capacitor 6



Tag:

FP-4-150-SM/SP

150KVAR Conduction Cooled Capacitor

0.17μF Conduction Cooled Capacitor
