Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor

Contact Now

Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor

Minimum Order Quantity :	20pcs	Price :	USD230/PC
Delivery Time :	14days	Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000PCS/MONTH

Place of Origin:	China	Brand Name:	GDHY
Certification:	ISO,SGS	Model Number:	C41701184KBC3181-01

Detail Information
Capacity:	0.18uF	Voltage:	700VAC
Size:	75mm50mm30.2mm	Power:	180KVAR
Frequency:	324KHZ-601KHZ	Model:	C41701184KBC3181-01
Brand:	GDHY	Terminal:	Polypropylnen Film&Copper
Series:	Conduction Cooled Capacitor	Place Of Original:	China
Max Irms:	350A	Application:	Induction Heating, Heat Treatment, Plasma Applications, Resonant Circuits, Medical Imaging, Wireless Power Transfer, EV (electric Vehicle) Charging, IPT, High Frequency Inverters,etc.
High Light:	Celem CSP180 , 180KVar Conduction Cooled Capacitor , 0.18uF 700V Conduction Cooled Capacitor

Product Description

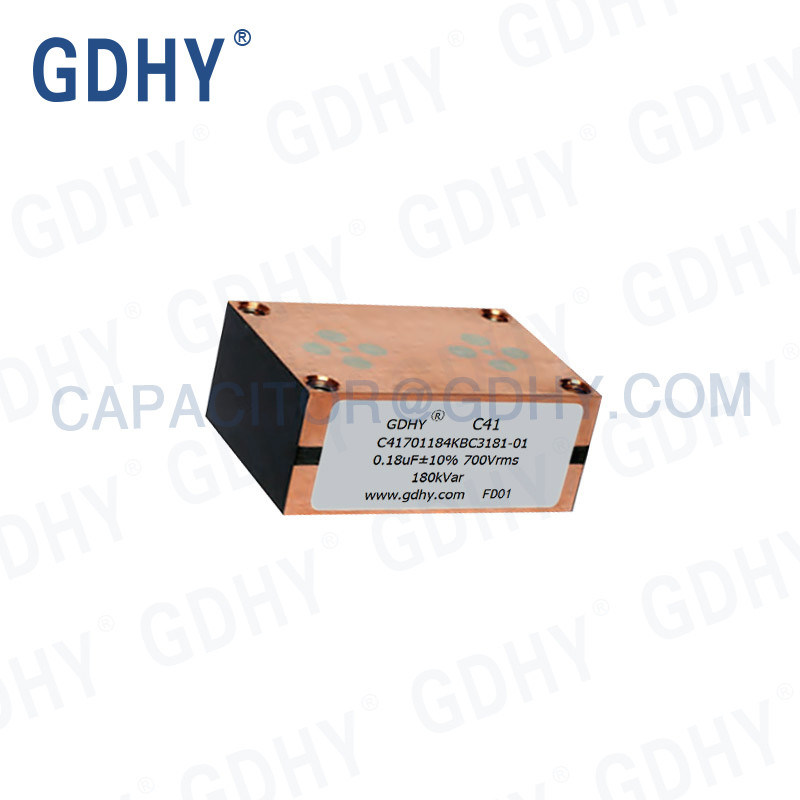

C41-BC3 0.18uF 700V 180KVar same as Celem CSP180 for hardening machine Conduction Cooled Induction Power Capacitor

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Operating Temperature Range	-40℃～85℃
Capacity Range	0.1μF～5μF
Power Range	180kVar
Rated Voltage	400-1000VAC
Capacity Tolerance	±5% ~ ±10%
Test Voltage between Terminals	1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Application

*Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Feature

● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt

● Can bear large current, excellent heat dissipation

Product Picture

Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor 0

Product Shape

Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor 1

Workshop&Equipment

Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor 2

Exhibition

Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor 3

Certification

Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor 4

Packing Method

Celem CSP180 0.18uF 700V 180KVar Conduction Cooled Capacitor 5
