3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits
3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits
Contact Now

3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits

Minimum Order Quantity : 50 PCS Price : PLEASE CONTACT US FOR DETAILS
Delivery Time : 14 DAYS Payment Terms : Western Union, T/T, MoneyGram
Supply Ability : 1000PCS/MONTH
Place of Origin: GUANGZHOU, CHINA Brand Name: GDHY
Certification: SGS, ISO Model Number: C42302304JP34-01

Detail Information
BRAND: GDHY SUPPLIER TYPE: ORIGINAL MANUFACTURER
CHARACTERISTICS: HIGH PULSE CURRENT, SELF HEALING TERMINAL: TINNED COPPER WIRE
OPERATION TEMP: -40℃～85℃ Max:+105℃ CAPACITANCE: 0.30UF/330NF
TOLERANCE: ±5% RATED VOLTAGE: 3000VDC
DIMENSION: 57.5*35*50MM PITCH: 52.5MM
High Light:

3000VDC Resonant Capacitor

,

P52.5 Resonant Capacitor

,

52.5MM Resonant Capacitor

Product Description

3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits 0RESONANT CAPACITOR​ 0.30UF 304 3000VDC WELDING MACHINE INSTRUMENT PARTS



Technical Parameter



Reference Standards GB/T 17702 IEC 61071
Capacity 0.30μF
Rated Voltage 3000VDC
Capacity Tolerance ±5%(J)
Withstand Voltage 1.5Ur(DC)60S 20℃
1000+2×Ur/√2(VAC) 50Hz 60S(1min 3000V)
Dissipation Factor tgδ≤0.0005 C≤1μF f=10KHz at 20℃
tgδ≤0.0010 C≥1μF f=10KHz at 20℃
Insulation Resistance C≤0.33μF Rs≥15000MΩ(20℃ 100VDC 60S)
Flame Retardation UL94V-0
Life Expectancy 100000hrs ( Ur hotspot ≤ 85℃)


Specification download:  C42.pdf



Application



● Mainly used in UPS, small power inverter, inverter welding machine, induction heating power for DC filter.

● Widely used in series circuits or parallel resonant circuits of power electronic devices.

● Also applied to the peak voltage of the switching device in power electronics, peak current absorption protection.



Feature



● Non-inductive widing with metallized polypropylene film

● Special metal spray, plastic shell encapsulation, epoxy resin sealed

● Tinned copper wire, small size, easy installation

● High voltage resistance, small dissipation factor (tgδ)

● Low ESL and ESR, low temperature rise

● Good frequency, high pulse current, high dV/dt, high stability, self healing

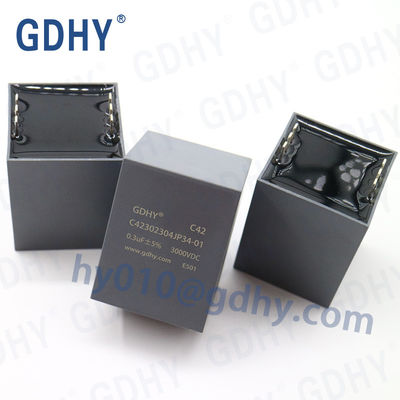

Product Picture



3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits 1



Product Shape



3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits 2



Production

3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits 3



Workshop&Equipment

3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits 4



Packing method

MKP-X2 0.33UF/310V P22.5 WIMA FKP 2/FKP 3 KEMET R4631/R463R/R463W/R463N TDK B32669 VISHAY F339M-X2 SAFETY CAPACITOR 5

Certificate

3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits 6

Exhibition

MKP-X2 0.33UF/310V P22.5 WIMA FKP 2/FKP 3 KEMET R4631/R463R/R463W/R463N TDK B32669 VISHAY F339M-X2 SAFETY CAPACITOR 7

3000VDC Resonant Capacitor 5% 0.3UF P52.5 Welding Machine Series Circuits 8
