GDHY PP Film 500A 330nF Water Cooled Capacitor

Contact Now

GDHY PP Film 500A 330nF Water Cooled Capacitor

Minimum Order Quantity :	20pcs	Price :	USD30/PC
Delivery Time :	14days	Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000PCS/ MONTH

Place of Origin:	China	Brand Name:	GDHY
Certification:	ISO,SGS	Model Number:	C41701334KBB2301-01

Detail Information
Capacity:	0.33uF	Voltage:	700VAC
Size:	80mm80mm36mm	Power:	300KVAR
Frequency:	295-401KHZ	Model:	C41701334KBB2301-01
Capacity Tolerance:	±5% ~ ±10%	Material:	Polypropylnen Film&Copper
Series:	Water Cooled Capacitor	Place Of Original:	China
Max Irm:	500A	Application:	Induction Heating, Heat Treatment, Plasma Applications, Resonant Circuits, Medical Imaging, Wireless Power Transfer, EV (electric Vehicle) Charging, IPT, High Frequency Inverters,etc.
High Light:	330nF Water Cooled Capacitor , 500A Water Cooled Capacitor , GDHY PP Film Capacitor

Product Description

C41-BB2 0.33uF 700V 300KVar Alcon FP-7-300 for Induction Melting Machine Water Cooled Capacitor Induction Heating Copper Capacitor

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Operating Temperature Range	-40℃～85℃
Capacity Range	0.33μF~4μF
Power Range	300~400kVar
Rated Voltage	400-1100VAC
Capacity Tolerance	±5% ~ ±10%
Test Voltage between Terminals	1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Application

Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Features

● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt,

● Can bear large current, excellent heat dissipation

Product Picture

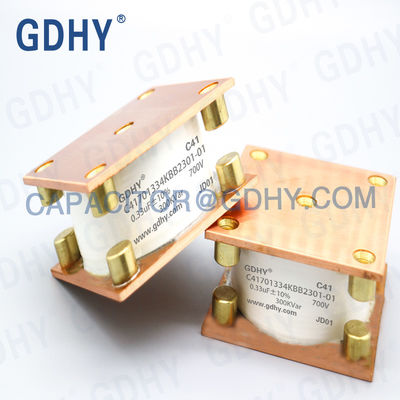

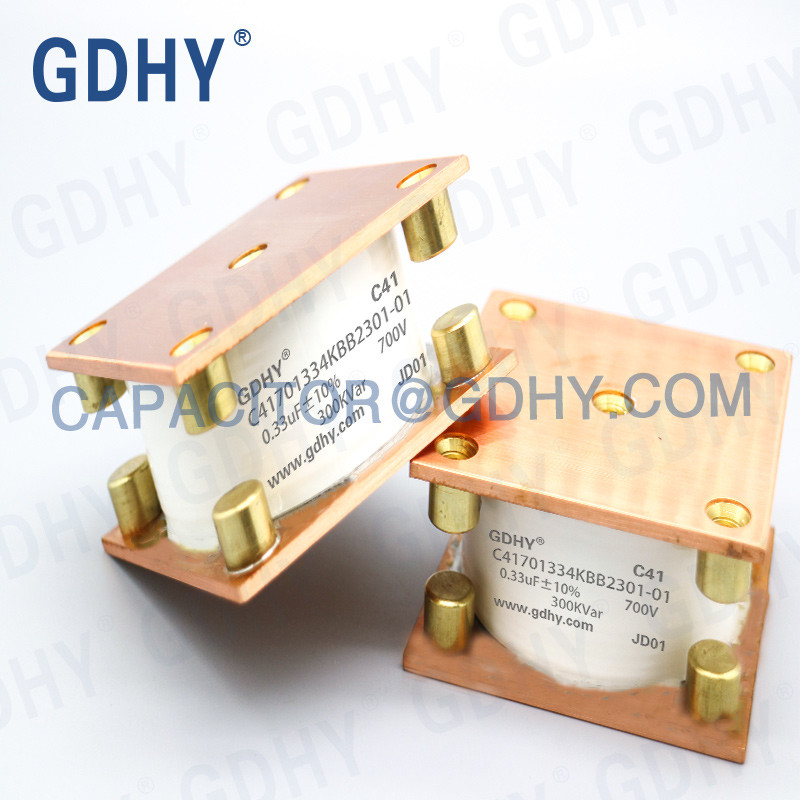

GDHY PP Film 500A 330nF Water Cooled Capacitor 0

Product Shape

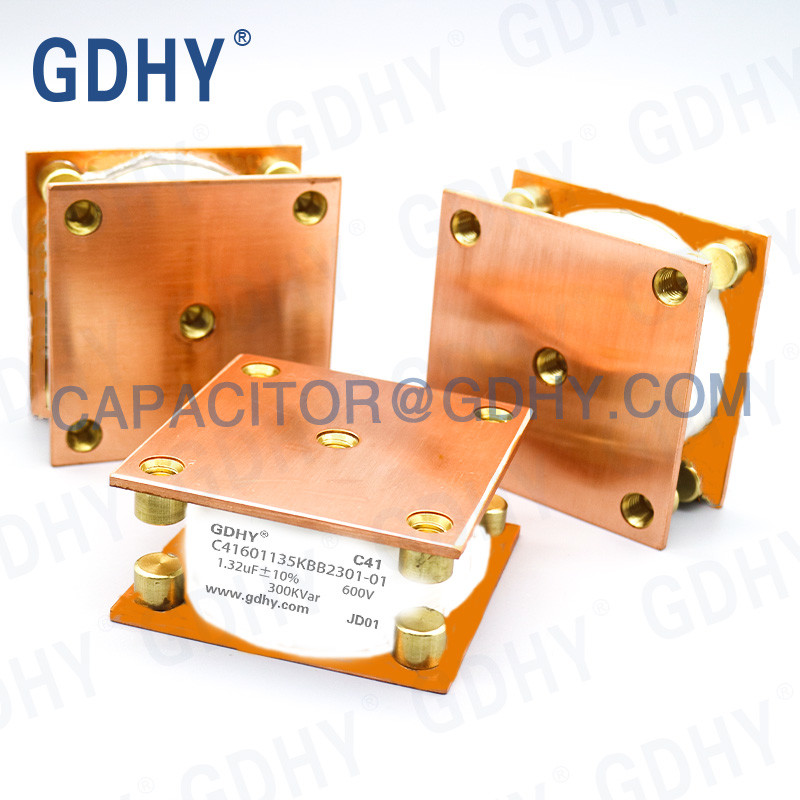

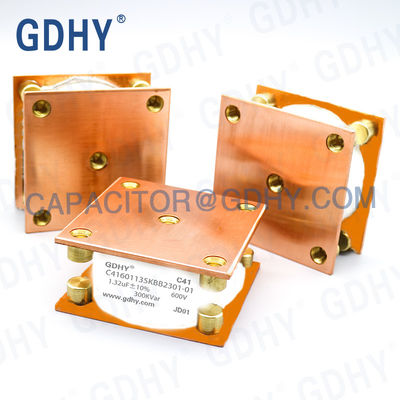

GDHY PP Film 500A 330nF Water Cooled Capacitor 1

Workshop&Equipment

GDHY PP Film 500A 330nF Water Cooled Capacitor 2

Exhibition

GDHY PP Film 500A 330nF Water Cooled Capacitor 3

Certification

GDHY PP Film 500A 330nF Water Cooled Capacitor 4

Packing Method

GDHY PP Film 500A 330nF Water Cooled Capacitor 5
