LOW LOSSES 21UF 500VAC Induction Heater Capacitor
Contact Person : Roger Law
Phone Number : +86 189 8890 2989
WhatsApp : +8618988902989
| Minimum Order Quantity : | 20PCS | Price : | USD112/ PCS |
|---|---|---|---|
| Packaging Details : | CARTON WITH FOAM BOX AND ANTI-CORRSION PROTECT. | Delivery Time : | 14 DAYS |
| Payment Terms : | T/T, Western Union, MoneyGram | Supply Ability : | 1000 PCS/MONTH |
| Place of Origin: | GUANGZHOU, CHINA. | Brand Name: | GDHY |
|---|---|---|---|
| Certification: | SGS,ISO | Model Number: | C41701855KTE2501-01 |
|
Detail Information |
|||
| BRAND: | GDHY | PLACE OF ORIGIN: | GUANGZHOU, CHINA |
|---|---|---|---|
| SUPPLIER TYPE: | ORIGINAL MANUFACTURER | MODEL NUMBER: | C41701855KTE2501-01 |
| CHARACTERISTICS: | WATER COOLED, CONDUCTION COOLED, EXCELLENT HEAT DISSPATION. | CORE: | IMPORTED COPPER FOIL |
| TERMINAL: | COPPER | CERTIFICATION: | ISO,SGS |
| OPERATION TEMP: | -40℃～85℃ | CAPACITANCE: | 8.5UF |
| TOLERANCE: | ±10% | RATED POWER: | 500KVAR |
| RATED VOLTAGE: | 700VAC | DIMENSION(D*H): | 98*71.5*60MM |
| LIFE EXPECTANCY: | 100000h At UN And 70℃,30000h At Urms | ADVANTAGE: | KEEP LOW DF AND LONG LIFE EXPECTANCY |
| PRINTING METHOD: | LASER MARKING | APPLICATION: | NEW ENERGY FIELDS; TRANSPORTATION FACILITIES; HIGH POWER INDUSTRIAL FACILITIES: QUALITY CONTROL: IQC, SPC, INSPECTION, WAREHOUSING |
| EXPERIENCE: | OVER 22 YEARS | INSTALLATION: | THROUGH HOLE |
| CURRENT: | 1000A | FREQUENCY: | 19-38KHZ |
| Highlight: | Conduction water cooled Capacitor,8.5UF Induction Heater Capacitor,500KVA Induction Heater Capacitor |
||
Product Description
C500TW FP 12-500H C41-TE1 8.5UF 700VAC 500Kvar INDUCTION HEATER CAPACITOR CONDUCTION COOLED CAPACITOR
| Reference Standards | GB/T 3984-2004 IEC 60110.1 |
| Operating Temperature Range | -40℃～85℃ |
| Capacity Range | 1.22-6.3μF |
| Power Range | 500kVar |
| Rated Voltage | 400-1100VAC |
| Capacity Tolerance | ±10% |
| Test Voltage between Terminals | 1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃ |
| Dissipation Factor | tgδ≤5×10-4 at 25℃±5℃,1kHz |
| Insulation Resistance | R•C≥3000s,at 100VDC,25℃±5℃,60s |
| Life Expectancy | 100000h at UN and 70℃,30000h at Urms |
Application
Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.
Features
● Conduction water-cooled
● Polypropylene dielectric
● Low dissipation factor(tgδ), low ESL, low ESR
● High voltage, high frequency and high dV/dt,
● Can bear large current, excellent heat dissipation

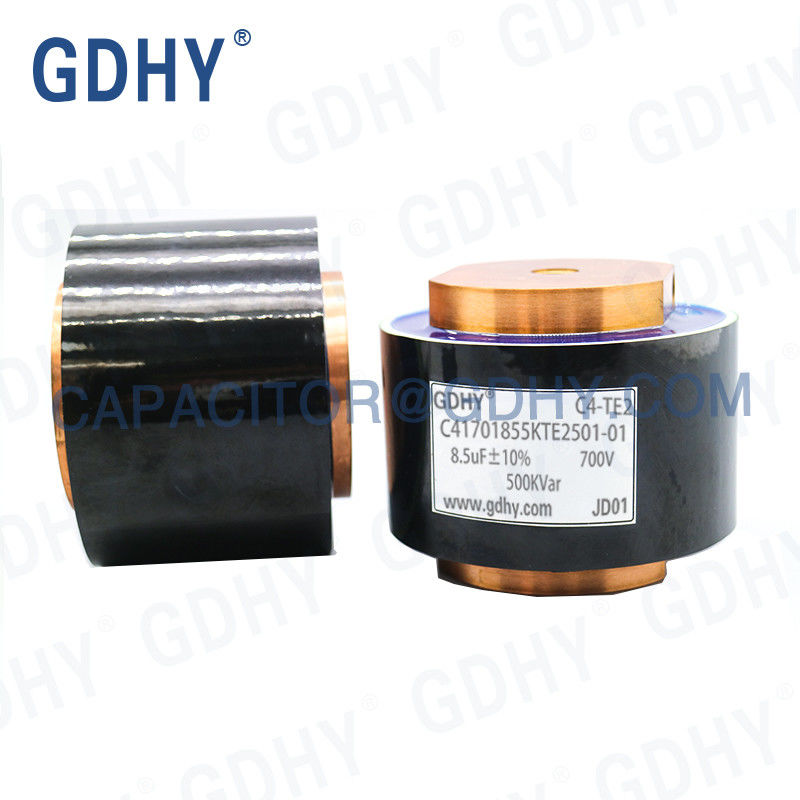

Product Picture
