GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment

Contact Now

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment

Minimum Order Quantity :	32PCS	Price :	Please contact us for details.
Packaging Details :	plastic bag and carton	Delivery Time :	14 DAYS
Payment Terms :	Western Union, MoneyGram, T/T	Supply Ability :	1000 PCS

Place of Origin:	GUANGZHOU, CHINA	Brand Name:	GDHY
Certification:	SGS,ISO	Model Number:	C41401455JBA1301-01

Detail Information
Place Of Origin:	Guangzhou, China	Supplier Type:	Original Manufacturer
Classification:	Polypropylene Film Capacitor	Model Number:	C41401455JBA1301-01
Material:	Metallized Polypropylene Film	Operating Temperature Range:	-40℃～+85℃
Capacitance:	4.5UF	Height:	80mm
Length:	80mm	Thickness:	36.5mm
Highlight:	C41-BA1-4.5uF/400VAC Capacitor , Resonance Equipment C41-BA1-4.5uF/400VAC , Water Cooled Capacitor C41-BA1-4.5uF/400VAC

Product Description

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Capacitance range	0.1uF～85uF
Operating Temperature Range	-40°℃~85°℃
Rated Capacitance	100kVar-1500 kVar
Rated Voltage	400VAC-1100VAC
Capacity Tolerance	士5%±10%
Dissipation factor	tg6≤5×10-4 at 25℃土5℃,1kHz
Insulation resistance	R·C≥3000s, at 100VDC,25℃土5℃,60s

Specification download: C41-BA1.pdf

Application

Widely used in high power and high frequency resonant devices

Features

Conduction water-cooled
Polypropylene dielectric
Low dissipation factor(tg6),low ESL and low ESR
High voltage, high frequency and high dv/dt
High current resistance, excellent heat dissipation

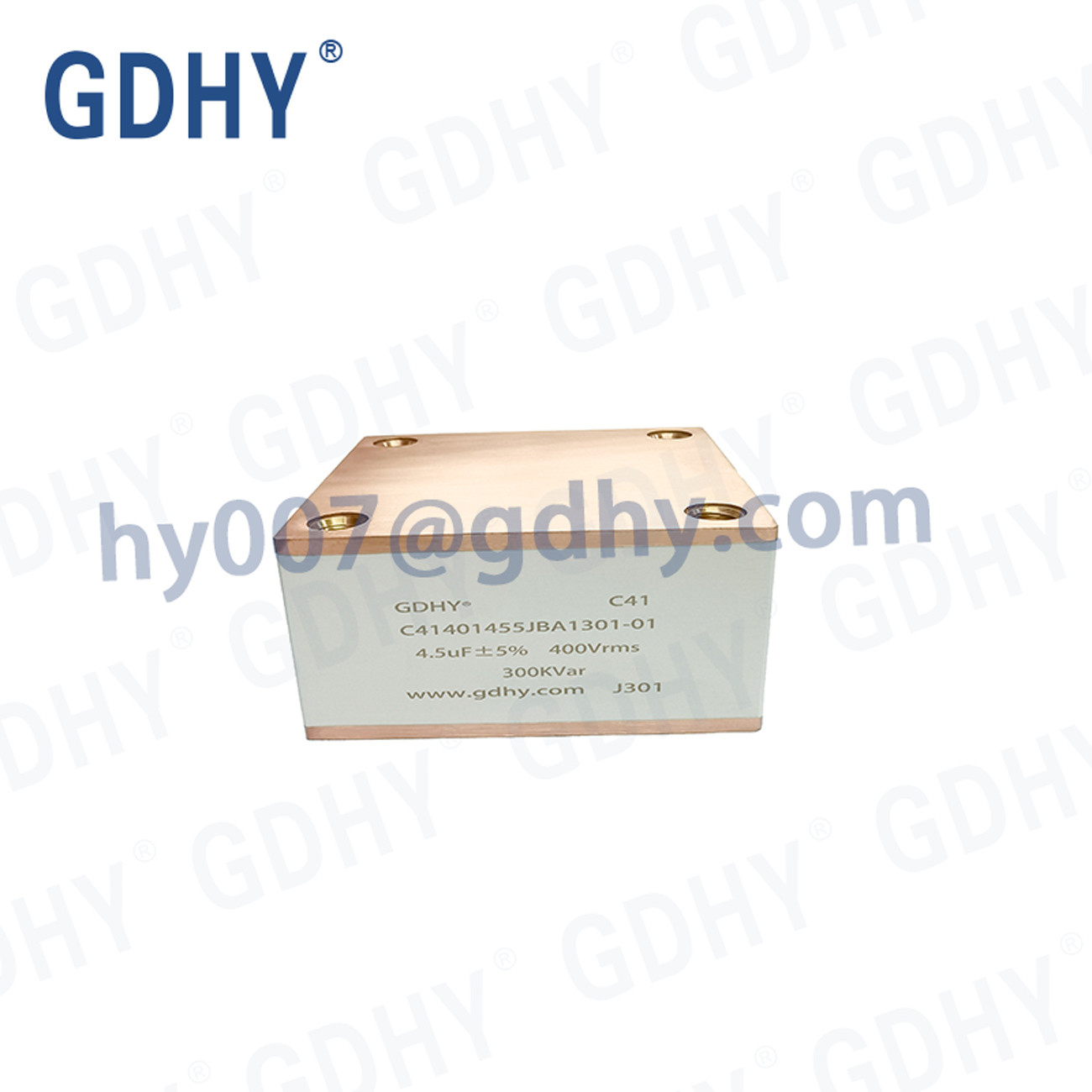

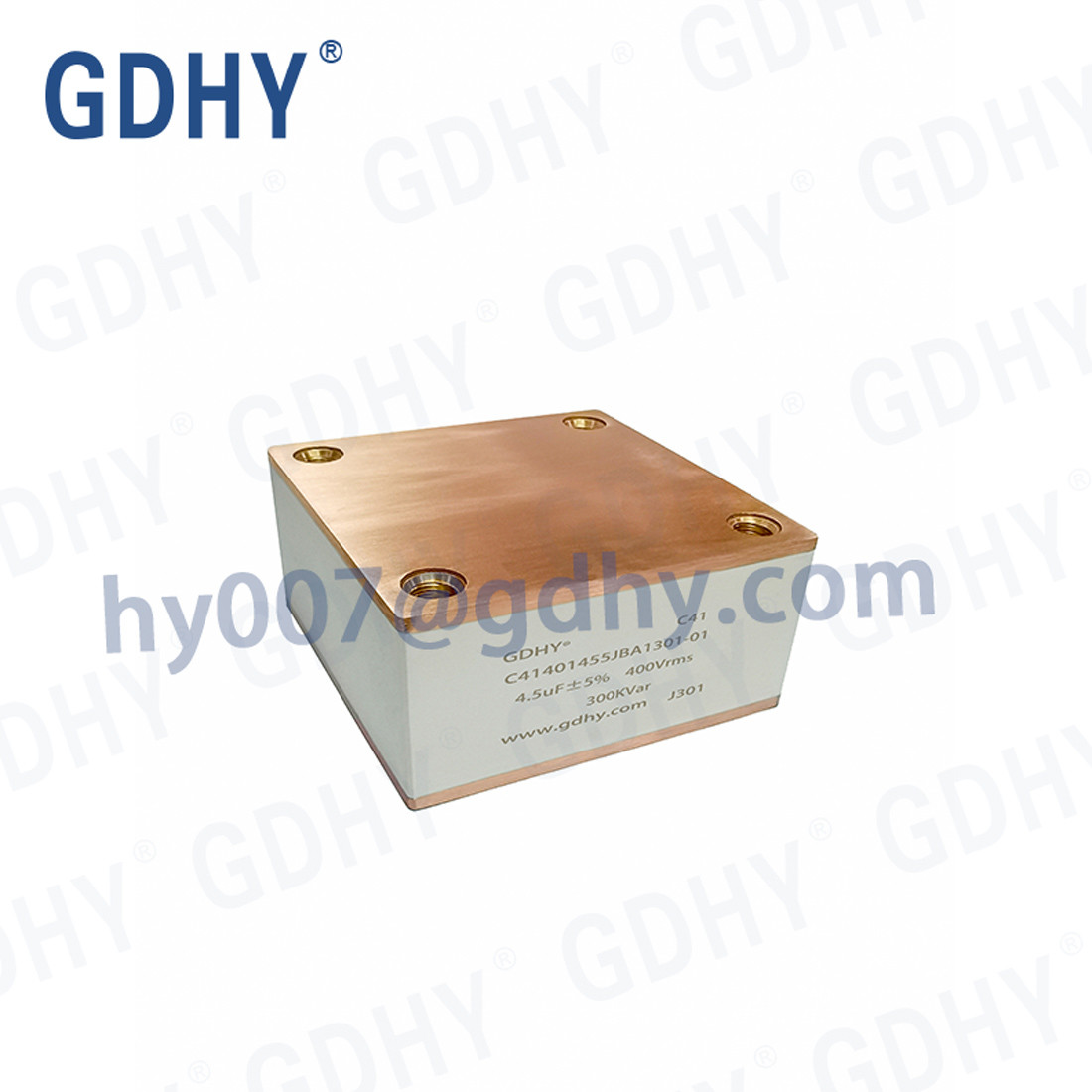

Product picture

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment 1

Product shape

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment 3

Production

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment 4

Workshop& Equipment

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment 5

Packing method

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment 6

Certificate

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment 7

Exhibition

GDHY Water Cooled Capacitor C41-BA1 4.5uF 400VAC 300kVar (Alcon FP-7-300) Used in High-Power High-Frequency Resonance Equipment 8
