Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor

Contact Now

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor

Minimum Order Quantity :	50PCS	Price :	USD4.7
Delivery Time :	14DAYS	Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000PCS/MONTH

Place of Origin:	CHINA	Brand Name:	GDHY
Certification:	ISO,SGS	Model Number:	C31701155JPC1-01

Detail Information
Capacity:	1.5uF	Voltage:	700VDC
Size(LTH):	42.524.527.5MM	Application:	IGBT,UPS, Inverter, Induction Heating, Electric Welding Machine
Model:	C31701155JPC1-01	Brand:	GDHY
Packing:	Plastic Case	Terminal:	Copper Sheet
Capacity Tolerance:	±5%(J); ±10%(K)	Certification:	ISO,SGS
Material:	Polypropylnen Film	Series:	Resonant Capacitor
Place Of Original:	China	Color:	Gray
Encapsulation:	Flame Retardant Epoxy Encapsulation	ESR:	Low
High Light:	1.5uF WIMA Snubber Capacitor , 700V 1.5uF Snubber Capacitor , GDHY Snubber Film Capacitor

Product Description

C31 1.5uF 700V Same As WIMA Snubber MKP/MKP Capacitor Snubber Film Capacitor Inductrial Capacitor

Technical Parameter

Reference Standards	IEC61071 .GB/T17702
Operating Temperature Range	-40℃~+85℃ (Max. +105℃)
Capacity Range	0.047μF -10μF
Rated Voltage	700 VDC -3000VDC
Capacity Tolerance	±5%(J); ±10%(K)
Withstand voltage	1.5Un Dc/10S
Dissipation Factor	tgδ≤0.0005 C≤1μF f=10KHz Tgδ ≤ 0.0010 C≥1μF f=10KHz
Insulation Resistance	C≥0.33μF Rs≥30000MΩ(at20℃ 100VDC 60S) C>0.33 μF RsC≥10000S (at20℃ 100VDC 60S)
Flame Retardation	UL94V-0
Life Expectancy	100000hrs at Un and 85℃

Application

*IGBT buffer absorption circuit protection; IGBT buffer absorption device.

*Widely used in power electronic equipment UPS, inverter, induction heating, electric welding machine and other equipment peak voltage, peak current absorption protection

Features

● Plastic shell, flame-retardant epoxy encapsulation

● Tinned copper sheet extraction

● Resistance to high voltage, low dissipation factor

● Low ESL, low ESR, low temperature rise

● High pulse current, high dV/dt affordability

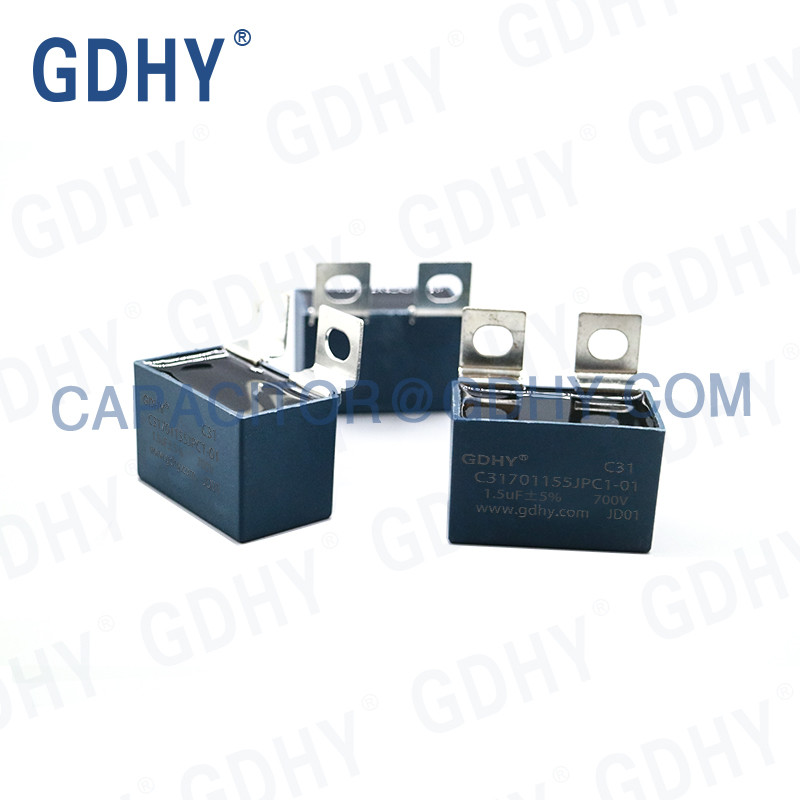

Product Picture

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor 0

Product Shape

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor 1

Product Process

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor 2

Workshop&Equipment

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor 3

Exhibition

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor 4

Certification

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor 5

Packing Method

Resonant GDHY 700V 1.5uF WIMA Snubber Capacitor 6
