CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger

Contact Now

CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger

Minimum Order Quantity :	100KPCS	Price :	PLEASE CONTACT US FOR MORE DETAILS
Packaging Details :	PLASTIC BAG	Delivery Time :	15 WORKING DAYS
Payment Terms :	Western Union, T/T, MoneyGram	Supply Ability :	1KK PCS/MONTH

Place of Origin:	GUANGZHOU, CHINA	Brand Name:	GDHY
Certification:	SGS, ISO	Model Number:	CBB22 225J400V P27

Detail Information
BRAND NAME:	GDHY	SUPPLIER TYPE:	ORIGINAL MANUFACTURER
PRODUCT TYPE:	METALLIZED POLYPROPYLENE FILM CAPACITOR	CAPACITY:	2.2UF/225
RATED VOLTAGE:	400V	DIMENSION:	30.516.522.5MM
PITCH:	27MM	APPLICATION:	LED BULB, FAN, QUICK CHARGER
High Light:	CBB22 Metaillized Polypropylene Film Capacitor , Metaillized Polypropylene Film Capacitor 2.2UF 400V , Polypropylene Film Capacitor for LED Bulb

Product Description

CBB22 225J 2.2UF 400V P27 METALLIZED POLYPROPYLENE FILM CAPACITOR LED LIGHTING QUICK CHARGER

Technical Parameter

Case Code	B2250400-D-27-1R
Reference Standards	GB/T 10190(IEC 60384-16)
Climate Category	40/085/21
Operating Temperature Range	from -40℃ to +85℃
Capacitance	2.2μF/225
Rated Voltage	400V
Pitch	27MM
Dimension	30.516.522.5MM
Capacitance Tolerance	±5%(J);±10%(K)
Withstand voltage	Vt-t:1.6UN 5S (at20 ±5%)
Dissipation Factor	tgδ≤0.0010 (20℃, 1KHz)
Insulation Resistance	RCN>30000S (at 20℃ 100VDC 1Min)

Specification download: CBB22.pdf

Application

● Widely used in a various of AC and DC pulse larger circuit.

● Can be applied in energy saving lamp, LED drive power supply, the stage lighting power supply, stage fog machine control panel, hotel electric switch, mosquito dispeller panel, automobile ballast.

● Suitable for low-pulse circuits, frequency and current circuits, general resonance circuit and the S-shaping correction circuits of the display device.

Feature

● Imported polypropylene film, epoxy resin power coating

● Non-inductive winding structure

● Very low dissipation, which is good at high frequency applications

● Small inherent temperature rise

● Good stability of capacitance and reliability, high insulation resistance

● Excellent self-healing properties

Product Picture

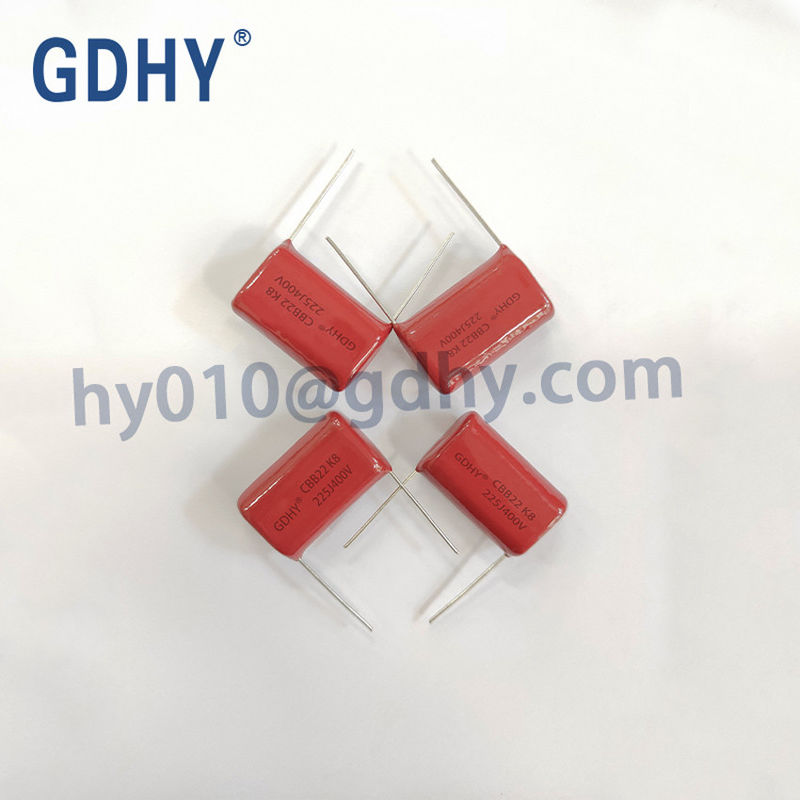

CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger 1

Product Shape

CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger 4

Production

CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger 5

Workshop&Equipment

CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger 6

Packing method

CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger 7

Certificate

CBB22 225J400V P27 Metaillized Polypropylene Film Capacitor for LED Bulb Quick Charger 8

Exhibition
