0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10
0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10
0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10
Contact Now

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10

Minimum Order Quantity : 30KPCS Price : 0.1 USD/ PCS
Packaging Details : PAPER CARTON Delivery Time : 14 DAYS
Payment Terms : Western Union, , T/T Supply Ability : 1000 KPCS/ MONTH
Place of Origin: GUANGDONG, CHINA Brand Name: GDHY
Certification: SGS,ISO Model Number: CBB28 152J630V P10

Detail Information
PRODUCT TYPE: CBB POLYPROPYLENE FILM CAPACITOR MODEL CODE: C1520630-D-10-2R
CAPACITANCE: 0.0015UF/152 RATED DC VOLTAGE: 630VDC
DIMENSION: 13.0*6.0*10.0 PITCH: 10MM
CHARACTERISTICS: SELF-HEALING SHAPE: RECTANGULAR
Highlight:

0.001UF Polypropylene Film Capacitor

,

CBB28 Polypropylene Film Capacitor

Product Description

  0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 00.0015UF 152J630V P10 CBB28 POLYPROPYLENE FIME CAPACITOR S-COORECTION CIRCUIT LONGER LIFE

Technical Parameter



Reference Standards GB/T 10190 (IEC 60384-16)
Climate Category 40/085/21
Operating Temperature Range -40℃~85℃
Capacity Range 0.001uf-0.68uf
Rated Voltage 100VDC,250VDC,400VDC,630VDC
Capacity Tolerance ±5%(J);±10%(K);±20%(M)
Withstand voltage 2Un 5S (at 20±5℃)
Insulation Resistance ≥30000MΩ；at 100VDC;20℃ ±5℃,60s



Application

● Suitable for high frequency, direct current and pulse circuits.

● Timing with high stability, SMPS and TV set, Lighting, Filtering.

Features

● Very low loss at high frequency, small internal temperature rise.

● High insulation resistance, excellent self-healing property and long life.

● Metallized polypropylene inner series structure

● High voltage resistance

● Flame retardant epoxy resin wrapping

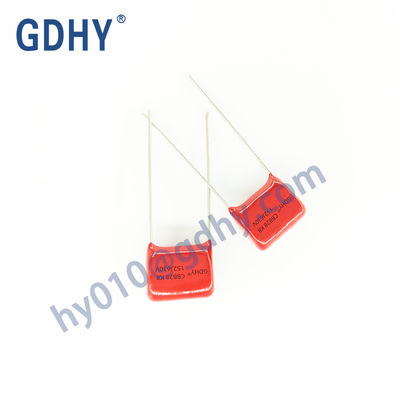

Product picture

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 10.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 2

Product shape

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 3

Production

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 4



Workshop& Equipment

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 5



Packing method

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 6

Certificate

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 7

Exhibition

0.001UF 0.68UF CBB28 Polypropylene Film Capacitor 630V 5% Pitch 10 8
